complexType gContactPersonAssociationType

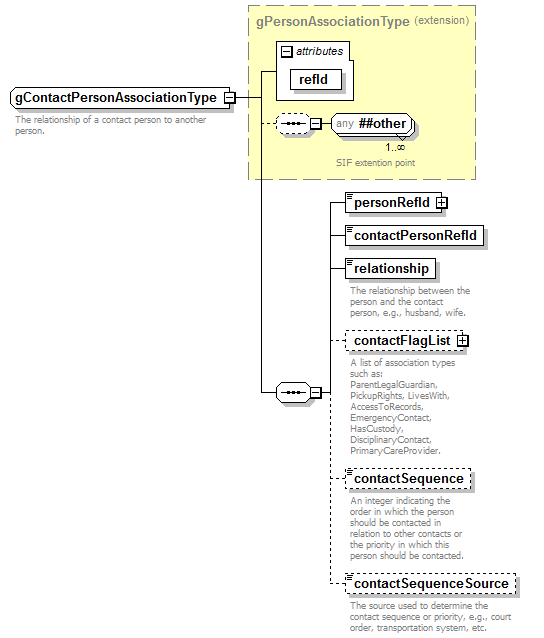

diagram
type	extension of gPersonAssociationType
properties	base  gPersonAssociationType
children	personRefId contactPersonRefId relationship contactFlagList contactSequence contactSequenceSource
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <cedsId/> <cedsURL/> documentation The relationship of a contact person to another person.

element gContactPersonAssociationType/personRefId

diagram
type	gGenericRefIdPointerType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
attributes	Name   Type   Use   Default   Fixed   annotation sif_Object gObjectNameType required         documentation The name of the SIF object that is being refereced by the payload of this element.

element gContactPersonAssociationType/contactPersonRefId

diagram
type	gRefIdPointerType
properties	isRef  0 content  complex
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}

element gContactPersonAssociationType/relationship

diagram
type	gRelationshipType
properties	isRef  0 content  simple
annotation	documentation The relationship between the person and the contact person, e.g., husband, wife.

element gContactPersonAssociationType/contactFlagList

diagram
type	gContactFlagListType
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	contactFlag
annotation	documentation A list of association types such as: ParentLegalGuardian, PickupRights, LivesWith, AccessToRecords, EmergencyContact, HasCustody, DisciplinaryContact, PrimaryCareProvider.

element gContactPersonAssociationType/contactSequence

diagram
type	xs:unsignedShort
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation An integer indicating the order in which the person should be contacted in relation to other contacts or the priority in which this person should be contacted.

element gContactPersonAssociationType/contactSequenceSource

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	documentation The source used to determine the contact sequence or priority, e.g., court order, transportation system, etc.
