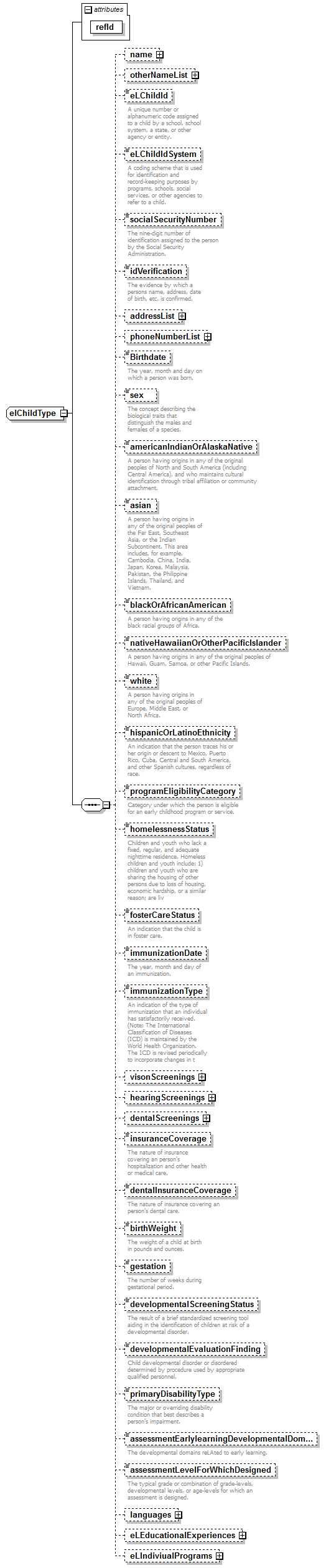

complexType elChildType

diagram
children	name otherNameList eLChildId eLChildIdSystem socialSecurityNumber idVerification addressList phoneNumberList Birthdate sex americanIndianOrAlaskaNative asian blackOrAfricanAmerican nativeHawaiianOrOtherPacificIslander white hispanicOrLatinoEthnicity programEligibilityCategory homelessnessStatus fosterCareStatus immunizationDate immunizationType visonScreenings hearingScreenings dentalScreenings insuranceCoverage dentalInsuranceCoverage birthWeight gestation developmentalScreeningStatus developmentalEvaluationFinding primaryDisabilityType assessmentEarlylearningDevelopmentalDomain assessmentLevelForWhichDesigned languages eLEducationalExperiences eLIndiviualPrograms
used by	element  elChild
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required

attribute elChildType/@refId

type	gRefIdType
properties	isRef  0 use  required
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}

element elChildType/name

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	firstName middleName lastName suffix

element elChildType/name/firstName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000115</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3115</cedsURL> documentation The full legal first name given to a person at birth, baptism, or through legal change.

element elChildType/name/middleName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000184</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3184</cedsURL> documentation A full legal middle name given to a person at birth, baptism, or through legal change.

element elChildType/name/lastName

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000172</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3172</cedsURL> documentation The full legal last name borne in common by members of a family.

element elChildType/name/suffix

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000121</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3121</cedsURL> documentation An appendage, if any, used to denote a person's generation in his family (e.g., Jr., Sr., III).

element elChildType/otherNameList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	otherName

element elChildType/otherNameList/otherName

diagram
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
attributes	Name   Type   Use   Default   Fixed   annotation othernameType xs:string          appinfo <sifChar>O</sifChar> <cedsId>000206</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3206</cedsURL> documentation Previous, alternate or other names or aliases associated with the person.

attribute elChildType/otherNameList/otherName/@othernameType

type	xs:string
properties	isRef  0
annotation	appinfo <sifChar>O</sifChar> <cedsId>000206</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3206</cedsURL> documentation Previous, alternate or other names or aliases associated with the person.

element elChildType/eLChildId

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001080</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3781</cedsURL> documentation A unique number or alphanumeric code assigned to a child by a school, school system, a state, or other agency or entity.

element elChildType/eLChildIdSystem

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000785</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3782</cedsURL> documentation A coding scheme that is used for identification and record-keeping purposes by programs, schools, social services, or other agencies to refer to a child.

element elChildType/socialSecurityNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000259</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3259</cedsURL> documentation The nine-digit number of identification assigned to the person by the Social Security Administration.

element elChildType/idVerification

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000618</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3611</cedsURL> documentation The evidence by which a persons name, address, date of birth, etc. is confirmed.

element elChildType/addressList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	address

element elChildType/addressList/address

diagram
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	street city stateProvince postalCode county country
attributes	Name   Type   Use   Default   Fixed   annotation addressType xs:string          appinfo <sifChar>O</sifChar> <cedsId>000010</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3358</cedsURL> documentation The type of address listed for a learner or a parent, guardian, family member or reLAted person.

attribute elChildType/addressList/address/@addressType

type	xs:string
properties	isRef  0
annotation	appinfo <sifChar>O</sifChar> <cedsId>000010</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3358</cedsURL> documentation The type of address listed for a learner or a parent, guardian, family member or reLAted person.

element elChildType/addressList/address/street

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	line1 apartmentNumber

element elChildType/addressList/address/street/line1

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000269</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3269</cedsURL> documentation The street number and street name or post office box number of an address.

element elChildType/addressList/address/street/apartmentNumber

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000019</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3019</cedsURL> documentation The apartment, room, or suite number of an address.

element elChildType/addressList/address/city

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000040</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3040</cedsURL> documentation The name of the city in which an address is located.

element elChildType/addressList/address/stateProvince

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000267</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3267</cedsURL> documentation The abbreviation for the state (within the United States) or outlying area in which an address is located.

element elChildType/addressList/address/postalCode

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000214</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3214</cedsURL> documentation A number that identifies each postal delivery area in the United States used as a portion of an address.

element elChildType/addressList/address/county

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000190</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3190</cedsURL> documentation The name of the county, parish, borough, or comparable unit (within a state) in which an address is located.

element elChildType/addressList/address/country

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000050</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3050</cedsURL> documentation The unique two character International Organization for Standardization (ISO) code for the country in which an address is located.

element elChildType/phoneNumberList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	phoneNumber

element elChildType/phoneNumberList/phoneNumber

diagram
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	phoneNumberIndicator number
attributes	Name   Type   Use   Default   Fixed   annotation phoneNumberType xs:string          appinfo <sifChar>O</sifChar> <cedsId>000280</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3280</cedsURL> documentation The type of communication number listed for a person.

attribute elChildType/phoneNumberList/phoneNumber/@phoneNumberType

type	xs:string
properties	isRef  0
annotation	appinfo <sifChar>O</sifChar> <cedsId>000280</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3280</cedsURL> documentation The type of communication number listed for a person.

element elChildType/phoneNumberList/phoneNumber/phoneNumberIndicator

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000219</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3219</cedsURL> documentation An indication that the telephone number should be used as the principal number for a person or organization.

element elChildType/phoneNumberList/phoneNumber/number

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000279</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3279</cedsURL> documentation The telephone number including the area code, and extension, if applicable.

element elChildType/Birthdate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000033</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3033</cedsURL> documentation The year, month and day on which a person was born.

element elChildType/sex

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000255</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3255</cedsURL> documentation The concept describing the biological traits that distinguish the males and females of a species.

element elChildType/americanIndianOrAlaskaNative

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000016</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3655</cedsURL> documentation A person having origins in any of the original peoples of North and South America (including Central America), and who maintains cultural identification through tribal affiliation or community attachment.

element elChildType/asian

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000020</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3656</cedsURL> documentation A person having origins in any of the original peoples of the Far East, Southeast Asia, or the Indian Subcontinent. This area includes, for example, Cambodia, China, India, Japan, Korea, Malaysia, Pakistan, the Philippine Islands, Thailand, and Vietnam.

element elChildType/blackOrAfricanAmerican

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000034</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3657</cedsURL> documentation A person having origins in any of the black racial groups of Africa.

element elChildType/nativeHawaiianOrOtherPacificIslander

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000192</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3658</cedsURL> documentation A person having origins in any of the original peoples of Hawaii, Guam, Samoa, or other Pacific Islands.

element elChildType/white

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000301</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3659</cedsURL> documentation A person having origins in any of the original peoples of Europe, Middle East, or North Africa.

element elChildType/hispanicOrLatinoEthnicity

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000144</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3144</cedsURL> documentation An indication that the person traces his or her origin or descent to Mexico, Puerto Rico, Cuba, Central and South America, and other Spanish cultures, regardless of race.

element elChildType/programEligibilityCategory

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000304</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3304</cedsURL> documentation Category under which the person is eligible for an early childhood program or service.

element elChildType/homelessnessStatus

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000149</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3149</cedsURL> documentation Children and youth who lack a fixed, regular, and adequate nighttime residence. Homeless children and youth include: 1) children and youth who are sharing the housing of other persons due to loss of housing, economic hardship, or a similar reason; are liv

element elChildType/fosterCareStatus

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001082</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3783</cedsURL> documentation An indication that the child is in foster care.

element elChildType/immunizationDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000306</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3306</cedsURL> documentation The year, month and day of an immunization.

element elChildType/immunizationType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001248</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4214</cedsURL> documentation An indication of the type of immunization that an individual has satisfactorily received. (Note: The International Classification of Diseases (ICD) is maintained by the World Health Organization. The ICD is revised periodically to incorporate changes in t

element elChildType/visonScreenings

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	visionScreening

element elChildType/visonScreenings/visionScreening

diagram
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	date status

element elChildType/visonScreenings/visionScreening/date

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000703</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3680</cedsURL> documentation The year, month and day of a vision screening.

element elChildType/visonScreenings/visionScreening/status

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000308</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3308</cedsURL> documentation Status of an examination used to measure a person's ability to see.

element elChildType/hearingScreenings

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	hearingScreening

element elChildType/hearingScreenings/hearingScreening

diagram
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	date status

element elChildType/hearingScreenings/hearingScreening/date

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000705</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3681</cedsURL> documentation The year, month and day of a hearing screening.

element elChildType/hearingScreenings/hearingScreening/status

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000309</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3309</cedsURL> documentation Status of an examination used to measure a person's ability to perceive sounds.

element elChildType/dentalScreenings

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	dentalScreening

element elChildType/dentalScreenings/dentalScreening

diagram
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	date status

element elChildType/dentalScreenings/dentalScreening/date

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000706</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3682</cedsURL> documentation The year, month and day of a dental screening

element elChildType/dentalScreenings/dentalScreening/status

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000310</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3310</cedsURL> documentation The condition of a person's mouth or oral cavity; more specifically the condition of the hard tissues (i.e., teeth and jaws) and the soft tissues (i.e., gums, tongue, lips, palate, mouth floor, and inner cheeks). Good oral health denotes the absence of cl

element elChildType/insuranceCoverage

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000335</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3334</cedsURL> documentation The nature of insurance covering an person's hospitalization and other health or medical care.

element elChildType/dentalInsuranceCoverage

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000336</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3335</cedsURL> documentation The nature of insurance covering an person's dental care.

element elChildType/birthWeight

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000312</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3312</cedsURL> documentation The weight of a child at birth in pounds and ounces.

element elChildType/gestation

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000313</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3313</cedsURL> documentation The number of weeks during gestational period.

element elChildType/developmentalScreeningStatus

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000314</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3314</cedsURL> documentation The result of a brief standardized screening tool aiding in the identification of children at risk of a developmental disorder.

element elChildType/developmentalEvaluationFinding

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000315</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3315</cedsURL> documentation Child developmental disorder or disordered determined by procedure used by appropriate qualified personnel.

element elChildType/primaryDisabilityType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000218</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3218</cedsURL> documentation The major or overriding disability condition that best describes a person's impairment.

element elChildType/assessmentEarlylearningDevelopmentalDomain

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001000</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4003</cedsURL> documentation The developmental domains reLAted to early learning.

element elChildType/assessmentLevelForWhichDesigned

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000177</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3177</cedsURL> documentation The typical grade or combination of grade-levels, developmental levels, or age-levels for which an assessment is designed.

element elChildType/languages

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	language

element elChildType/languages/language

diagram
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	type code

element elChildType/languages/language/type

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000316</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3316</cedsURL> documentation An indication of the function and context in which a person uses a language to communicate.

element elChildType/languages/language/code

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000317</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3317</cedsURL> documentation The code for the specific language or dialect that a person uses to communicate.

element elChildType/eLEducationalExperiences

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	educationalExperience

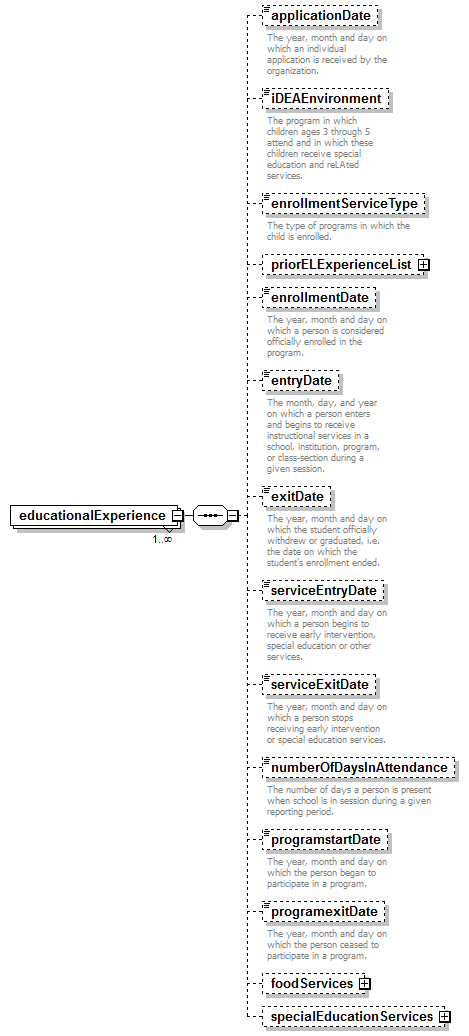

element elChildType/eLEducationalExperiences/educationalExperience

diagram
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	applicationDate iDEAEnvironment enrollmentServiceType priorELExperienceList enrollmentDate entryDate exitDate serviceEntryDate serviceExitDate numberOfDaysInAttendance programstartDate programexitDate foodServices specialEducationServices

element elChildType/eLEducationalExperiences/educationalExperience/applicationDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000323</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3323</cedsURL> documentation The year, month and day on which an individual application is received by the organization.

element elChildType/eLEducationalExperiences/educationalExperience/iDEAEnvironment

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000559</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3550</cedsURL> documentation The program in which children ages 3 through 5 attend and in which these children receive special education and reLAted services.

element elChildType/eLEducationalExperiences/educationalExperience/enrollmentServiceType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000318</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3318</cedsURL> documentation The type of programs in which the child is enrolled.

element elChildType/eLEducationalExperiences/educationalExperience/priorELExperienceList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	priorEL

element elChildType/eLEducationalExperiences/educationalExperience/priorELExperienceList/priorEL

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <sifChar>R</sifChar> <cedsId>000319</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3319</cedsURL> documentation Type(s) of prior experience (if any) in an early childhood program.

element elChildType/eLEducationalExperiences/educationalExperience/enrollmentDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000324</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3324</cedsURL> documentation The year, month and day on which a person is considered officially enrolled in the program.

element elChildType/eLEducationalExperiences/educationalExperience/entryDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000097</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3097</cedsURL> documentation The month, day, and year on which a person enters and begins to receive instructional services in a school, institution, program, or class-section during a given session.

element elChildType/eLEducationalExperiences/educationalExperience/exitDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000107</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3107</cedsURL> documentation The year, month and day on which the student officially withdrew or graduated, i.e. the date on which the student's enrollment ended.

element elChildType/eLEducationalExperiences/educationalExperience/serviceEntryDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000326</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3326</cedsURL> documentation The year, month and day on which a person begins to receive early intervention, special education or other services.

element elChildType/eLEducationalExperiences/educationalExperience/serviceExitDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000327</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3327</cedsURL> documentation The year, month and day on which a person stops receiving early intervention or special education services.

element elChildType/eLEducationalExperiences/educationalExperience/numberOfDaysInAttendance

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000202</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3202</cedsURL> documentation The number of days a person is present when school is in session during a given reporting period.

element elChildType/eLEducationalExperiences/educationalExperience/programstartDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000590</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3583</cedsURL> documentation The year, month and day on which the person began to participate in a program.

element elChildType/eLEducationalExperiences/educationalExperience/programexitDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000591</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3584</cedsURL> documentation The year, month and day on which the person ceased to participate in a program.

element elChildType/eLEducationalExperiences/educationalExperience/foodServices

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	foodService

element elChildType/eLEducationalExperiences/educationalExperience/foodServices/foodService

diagram
type	xs:string
properties	isRef  0 minOcc  1 maxOcc  unbounded content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000325</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3325</cedsURL> documentation An indication of a student's participation in free, reduced price, full price breakfast, lunch, snack, supper, and milk programs.

element elChildType/eLEducationalExperiences/educationalExperience/specialEducationServices

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	service

element elChildType/eLEducationalExperiences/educationalExperience/specialEducationServices/service

diagram
properties	isRef  0 minOcc  1 maxOcc  unbounded content  complex
children	serviceType setting specialEducationFTE

element elChildType/eLEducationalExperiences/educationalExperience/specialEducationServices/service/serviceType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000321</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3321</cedsURL> documentation The types of service, specially designed and at no cost to the parent/guardian, that adapts the curriculum, materials, or instruction for students identified as needing special education because of a disabling condition.

element elChildType/eLEducationalExperiences/educationalExperience/specialEducationServices/service/setting

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000322</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3322</cedsURL> documentation The setting in which a person receives services that adapt the curriculum, materials, or instruction for students identified as needing special education because of a disabling condition.

element elChildType/eLEducationalExperiences/educationalExperience/specialEducationServices/service/specialEducationFTE

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001242</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4208</cedsURL> documentation Calculated ratio of time the student is in a special education setting. Values range from 0.00 to 1.00. If the student is in a special education setting 25% of the time, the value is .25; if 100% of the time, the value is 1.00.

element elChildType/eLIndiviualPrograms

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	program

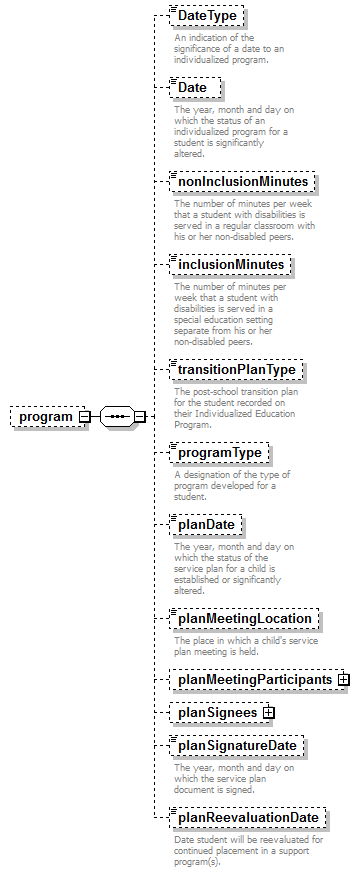

element elChildType/eLIndiviualPrograms/program

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	DateType Date nonInclusionMinutes inclusionMinutes transitionPlanType programType planDate planMeetingLocation planMeetingParticipants planSignees planSignatureDate planReevaluationDate

element elChildType/eLIndiviualPrograms/program/DateType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001231</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4196</cedsURL> documentation An indication of the significance of a date to an individualized program.

element elChildType/eLIndiviualPrograms/program/Date

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001232</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4197</cedsURL> documentation The year, month and day on which the status of an individualized program for a student is significantly altered.

element elChildType/eLIndiviualPrograms/program/nonInclusionMinutes

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001233</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4198</cedsURL> documentation The number of minutes per week that a student with disabilities is served in a regular classroom with his or her non-disabled peers.

element elChildType/eLIndiviualPrograms/program/inclusionMinutes

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001234</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4199</cedsURL> documentation The number of minutes per week that a student with disabilities is served in a special education setting separate from his or her non-disabled peers.

element elChildType/eLIndiviualPrograms/program/transitionPlanType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001235</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4200</cedsURL> documentation The post-school transition plan for the student recorded on their Individualized Education Program.

element elChildType/eLIndiviualPrograms/program/programType

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>000320</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3320</cedsURL> documentation A designation of the type of program developed for a student.

element elChildType/eLIndiviualPrograms/program/planDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001236</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4201</cedsURL> documentation The year, month and day on which the status of the service plan for a child is established or significantly altered.

element elChildType/eLIndiviualPrograms/program/planMeetingLocation

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001237</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4202</cedsURL> documentation The place in which a child's service plan meeting is held.

element elChildType/eLIndiviualPrograms/program/planMeetingParticipants

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	participant

element elChildType/eLIndiviualPrograms/program/planMeetingParticipants/participant

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <sifChar>R</sifChar> <cedsId>001238</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4203</cedsURL> documentation The position titles of individuals who attend the service plan meeting.

element elChildType/eLIndiviualPrograms/program/planSignees

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	signee

element elChildType/eLIndiviualPrograms/program/planSignees/signee

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <sifChar>R</sifChar> <cedsId>001239</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4204</cedsURL> documentation The position titles of individuals who sign a written service plan.

element elChildType/eLIndiviualPrograms/program/planSignatureDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001240</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4205</cedsURL> documentation The year, month and day on which the service plan document is signed.

element elChildType/eLIndiviualPrograms/program/planReevaluationDate

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <sifChar>O</sifChar> <cedsId>001241</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4207</cedsURL> documentation Date student will be reevaluated for continued placement in a support program(s).

XML Schema documentation generated by XMLSpy Schema Editor http://www.altova.com/xmlspy
