complexType assessmentFormType

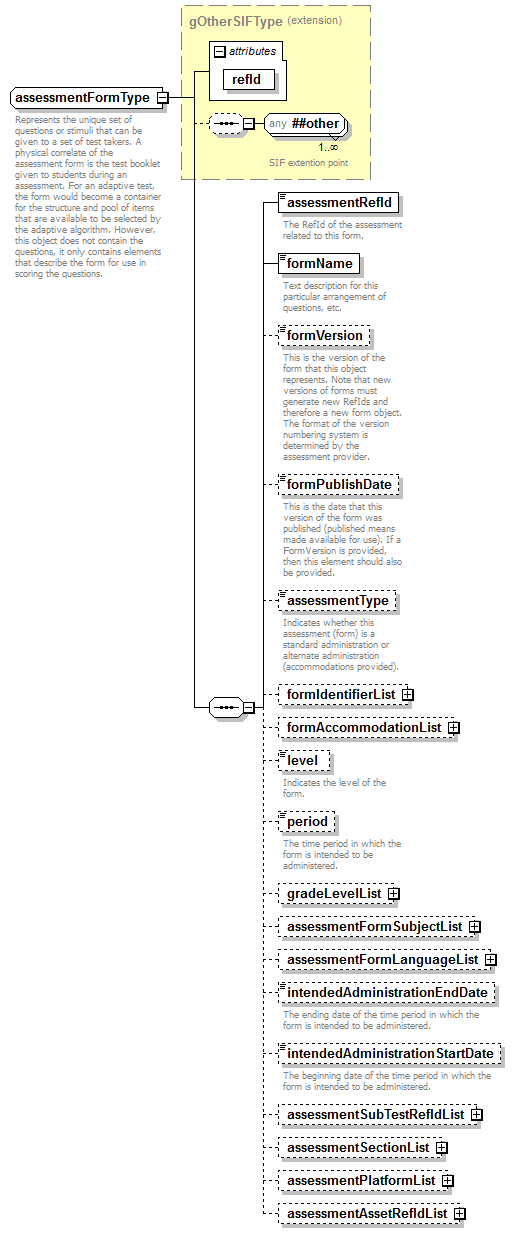

diagram
type	extension of gOtherSIFType
properties	base  gOtherSIFType
children	assessmentRefId formName formVersion formPublishDate assessmentType formIdentifierList formAccommodationList level period gradeLevelList assessmentFormSubjectList assessmentFormLanguageList intendedAdministrationEndDate intendedAdministrationStartDate assessmentSubTestRefIdList assessmentSectionList assessmentPlatformList assessmentAssetRefIdList
used by	element  assessmentForm
attributes	Name   Type   Use   Default   Fixed   annotation refId gRefIdType required
annotation	appinfo <elementName>Assessment Form</elementName> <events>no</events> <isSIFObject>yes</isSIFObject> <cedsId/> <cedsURL/> documentation Represents the unique set of questions or stimuli that can be given to a set of test takers. A physical correlate of the assessment form is the test booklet given to students during an assessment. For an adaptive test, the form would become a container for the structure and pool of items that are available to be selected by the adaptive algorithm. However, this object does not contain the questions, it only contains elements that describe the form for use in scoring the questions.

element assessmentFormType/assessmentRefId

diagram
type	gRefIdPointerType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The RefId of the assessment related to this form.

element assessmentFormType/formName

diagram
type	xs:normalizedString
properties	isRef  0 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>000024</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3024</cedsURL> documentation Text description for this particular arrangement of questions, etc.

element assessmentFormType/formVersion

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>001183</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4134</cedsURL> documentation This is the version of the form that this object represents. Note that new versions of forms must generate new RefIds and therefore a new form object. The format of the version numbering system is determined by the assessment provider.

element assessmentFormType/formPublishDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>001184</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4135</cedsURL> documentation This is the date that this version of the form was published (published means made available for use). If a FormVersion is provided, then this element should also be provided.

element assessmentFormType/assessmentType

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId> </cedsId> <cedsURL> </cedsURL> documentation Indicates whether this assessment (form) is a standard administration or alternate administration (accommodations provided).

element assessmentFormType/formIdentifierList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	formIdentifier
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentFormType/formIdentifierList/formIdentifier

diagram
type	gLocalIdType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	idType idValue
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentFormType/formAccommodationList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	formAccommodation
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentFormType/formAccommodationList/formAccommodation

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation This list is one or more of the specific accommodations available. If no accommodations are provided, then this list will not be present.

element assessmentFormType/level

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation Indicates the level of the form.

element assessmentFormType/period

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/> documentation The time period in which the form is intended to be administered.

element assessmentFormType/gradeLevelList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	gradeLevel
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentFormType/gradeLevelList/gradeLevel

diagram
type	gYearGroupType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName required
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentFormType/assessmentFormSubjectList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentFormSubject
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentFormType/assessmentFormSubjectList/assessmentFormSubject

diagram
type	gSubjectAreaType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	code hexValue hexValueDashed otherCodeList
attributes	Name   Type   Use   Default   Fixed   annotation codesetName
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId>000021</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3021</cedsURL>

element assessmentFormType/assessmentFormLanguageList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentFormLanguage
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentFormType/assessmentFormLanguageList/assessmentFormLanguage

diagram
type	xs:string
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId>001089</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4073</cedsURL>

element assessmentFormType/intendedAdministrationEndDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>001187</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4138</cedsURL> documentation The ending date of the time period in which the form is intended to be administered.

element assessmentFormType/intendedAdministrationStartDate

diagram
type	xs:date
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>001186</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=4137</cedsURL> documentation The beginning date of the time period in which the form is intended to be administered.

element assessmentFormType/assessmentSubTestRefIdList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentSubTestRefId
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentFormType/assessmentSubTestRefIdList/assessmentSubTestRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId> </cedsId> <cedsURL> </cedsURL> documentation A subtest identified by RefId.

element assessmentFormType/assessmentSectionList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentSection
annotation	appinfo <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentFormType/assessmentSectionList/assessmentSection

diagram
properties	isRef  0 minOcc  0 maxOcc  unbounded content  complex
children	assessmentSectionRefId assessmentSectionSequence
annotation	appinfo <sifChar>OR</sifChar> <cedsId/> <cedsURL/>

element assessmentFormType/assessmentSectionList/assessmentSection/assessmentSectionRefId

diagram
type	gRefIdPointerType
properties	isRef  0 content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>980</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3981</cedsURL> documentation The reference to an Assessment Section object.

element assessmentFormType/assessmentSectionList/assessmentSection/assessmentSectionSequence

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  1 content  simple
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId>979</cedsId> <cedsURL>https://ceds.ed.gov/cedselementdetails.aspx?termid=3980</cedsURL> documentation A numeric sequence in which the section will be presented to the test taker. This should be a simple integer sequence number (1,2,3, etc.) but may be other values that can be sorted into sequence (e.g., S-A, S-B, S-C, etc).

element assessmentFormType/assessmentPlatformList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentPlatform
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentFormType/assessmentPlatformList/assessmentPlatform

diagram
type	xs:token
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation A delivery platform that this form design will support.

element assessmentFormType/assessmentAssetRefIdList

diagram
properties	isRef  0 minOcc  0 maxOcc  1 content  complex
children	assessmentAssetRefId
annotation	appinfo <elementName/> <sifChar>O</sifChar> <cedsId/> <cedsURL/>

element assessmentFormType/assessmentAssetRefIdList/assessmentAssetRefId

diagram
type	gRefIdPointerType
properties	isRef  0 minOcc  0 maxOcc  unbounded content  simple
facets	Kind  Value  annotation  pattern  [a-fA-F0-9]{8}-[a-fA-F0-9]{4}-[14][a-fA-F0-9]{3}-[a-fA-F0-9]{4}-[a-fA-F0-9]{12}
annotation	appinfo <elementName/> <sifChar>OR</sifChar> <cedsId/> <cedsURL/> documentation A reference to a specific asset used by this form.
